Tech-Master Brass High Pressure Regulators

Single and Dual stage high pressure regulators suitable for non corrosive gas mixtures with  purity up to grade 4.5

The Tech-Master range of brass regulators are ideally suited for laboratory, research and analytical facilities.

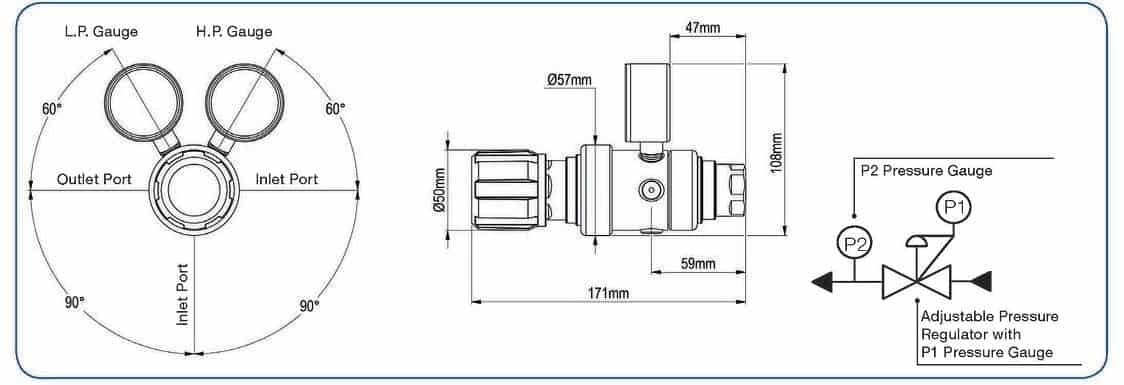

  • TECH MASTER GPT400 SERIES
    4.5 Purity Two Stage Brass Barstock Diaphragm Cylinder Regulator

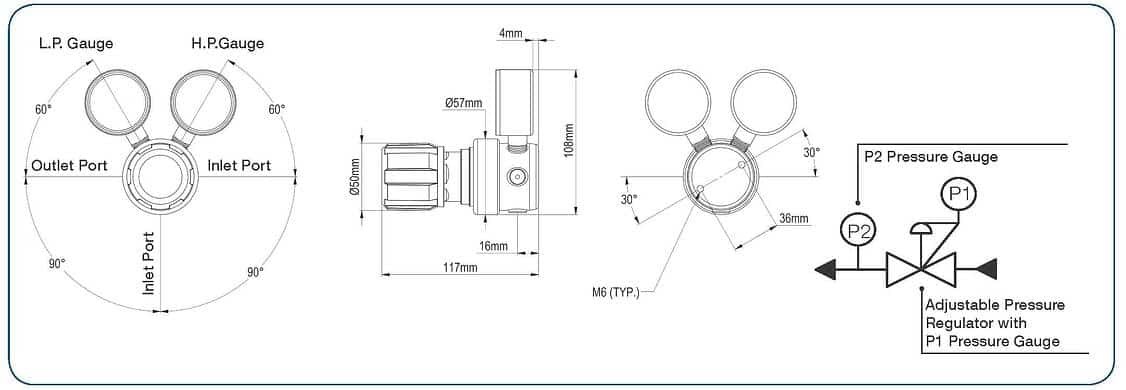

  • TECH MASTER GPS400 SERIES
    4.5 Purity Single Stage Brass Barstock Diaphragm Cylinder Regulator

Specifications

Materials:
Body: Brass

Piston: Brass

Valve Seat: Polyamide (Nylon)

Diaphragm & Diaphragm Seal: Polychloroprene (Neoprene)

Piston Seal: FKM

Filter: Sintered 316L Stainless Steel

Weight: 2.0kg

Temperature: -20c to +60c

Warranty: 2 year

Inlet Pressure:
Maximum 300 bar

Outlet Pressure:
Single Stage
Low-Pressure Diaphragm Regulator (0-1.5/3.5/6/10 BAR)
High-Pressure Piston Regulator (0-20/50/100/200/250 BAR)

Dual Stage
Low-Pressure Diaphragm Regulator (0-1.5/3.5/6/10 BAR)
High-Pressure Piston Regulator (0-20/50 BAR)

Connections:
Inlet: All BS, AS, and CGA connections available

Outlet: 1/4″ NPT Female
