In Line Regulators

Designed for in-line secondary regulation of low pressure gases to a stable outlet pressure.

In Line Regulators are available in the Tech MasterSpec Master and Chem Master series in brass, stainless steel or nickel plated brass.

Applications include laboratories, research and development facilities including gas and liquid chromatography, high purity carrier gases and calibration gases.

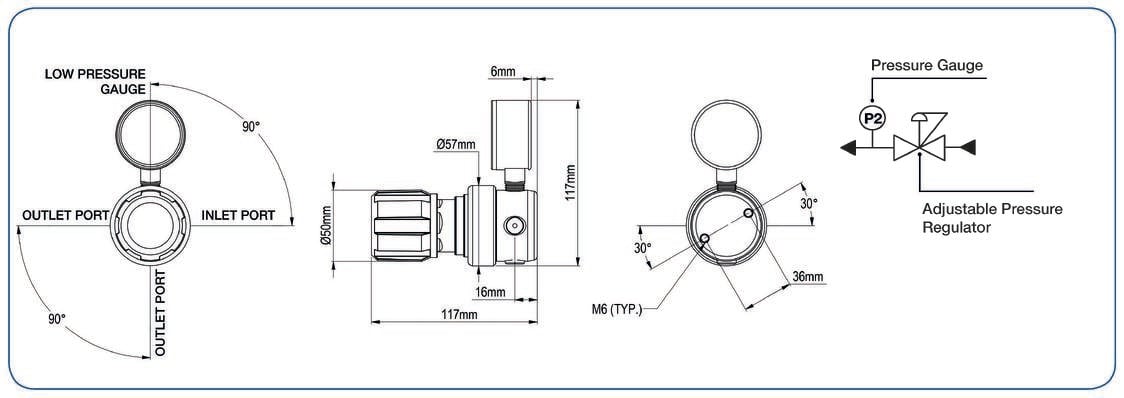

  • TECH MASTER GPL400 SERIES
    4.5 Purity Single Stage Brass Barstock Diaphragm Line Regulator

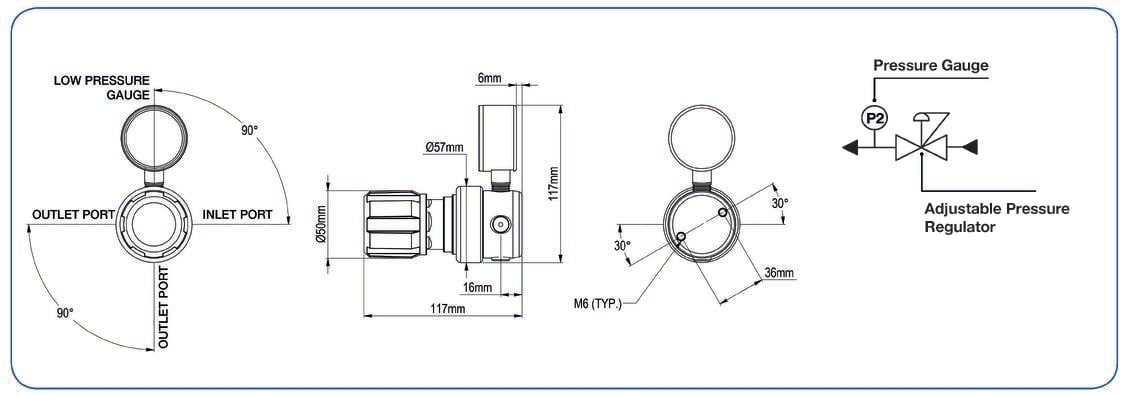

  • SPEC MASTER HPL600 SERIES
    6.0 Purity Single Stage Nickel Plated Brass Barstock Diaphragm Line Regulator

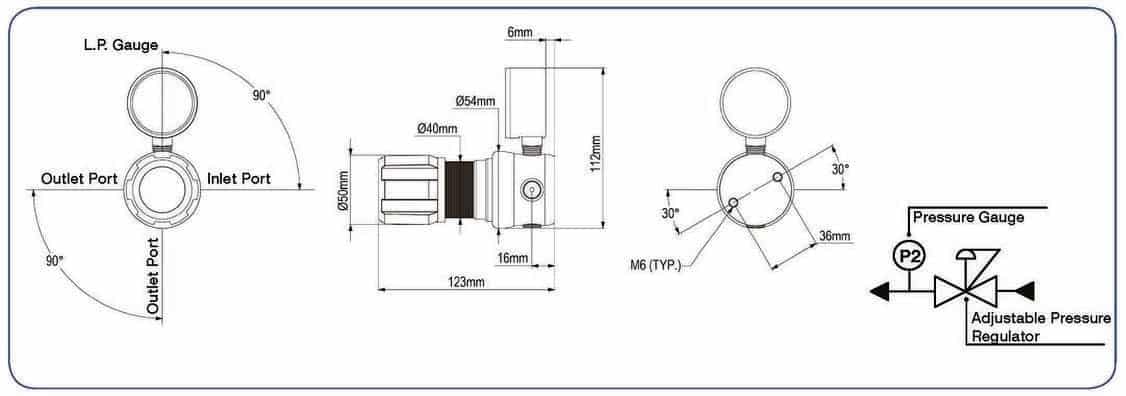

  • CHEM MASTER SGL600 SERIES
    6.0 Purity Single Stage Stainless Steel Diaphragm Line Regulator

Specifications

Type:
Single Stage Regulator

Materials:
Body:
Tech Master: Brass
Spec Master: Nickel Plated Brass
Chem Master:  316L Stainless Steel

Valve Seat:
Tech Master:  Polyamide (Nylon)
Chem/Spec Master: PCTFE

Diaphragm:
Tech Master: Polychloroprene (Neoprene) Spec/Chem Master: 316L Stainless Steel

Diaphragm Seal:
Tech Master: Polychloroprene (Neoprene) Spec/Chem Master: PTFE

Piston Seal: Tech/Chem/Spec Master: FKM

Filter: Sintered 316L Stainless Steel

Gas Purity:
Tech Master: Up to grade 4.5 gases (99.995)
Chem/Spec Master:  Up to grade 6.0 gases (99.9999)

Inlet Pressure:
Tech Master Diaphragm – 60 bar
Spec/Chem Master Diaphragm- 207 bar
Tech/Spec/Chem Master Piston – 300 bar

Outlet Pressure:
Tech/Spec/Chem Master: Low-Pressure Diaphragm Regulator (0-1.5/3.5/6/10 BAR)
Tech/Spec/Chem Master: High-Pressure Piston Regulator (0-20/50/100/200/250 BAR)

Inlet Port: 1/4″ NPT Female

Outlet Port: 1/4″ NPT Female

Helium Leak Integrity:
All products clean room assembled and undergo 100% Helium Leak Testing

Temperature: -20c to +60c

Weight: 1.1 kg
