Inline Outlet Point
The Inline Outlet Point is available in either the Chem-Master or Spec-Master series.
Designed for secondary pressure regulation of gas mixtures and high purity gases up to grade 6.0, to a stable outlet pressure.
The Inline Outlet Point is ideally suited for laboratory, research, analytical and industrial applications.
The slim line design permits installation where wall space may be limited.

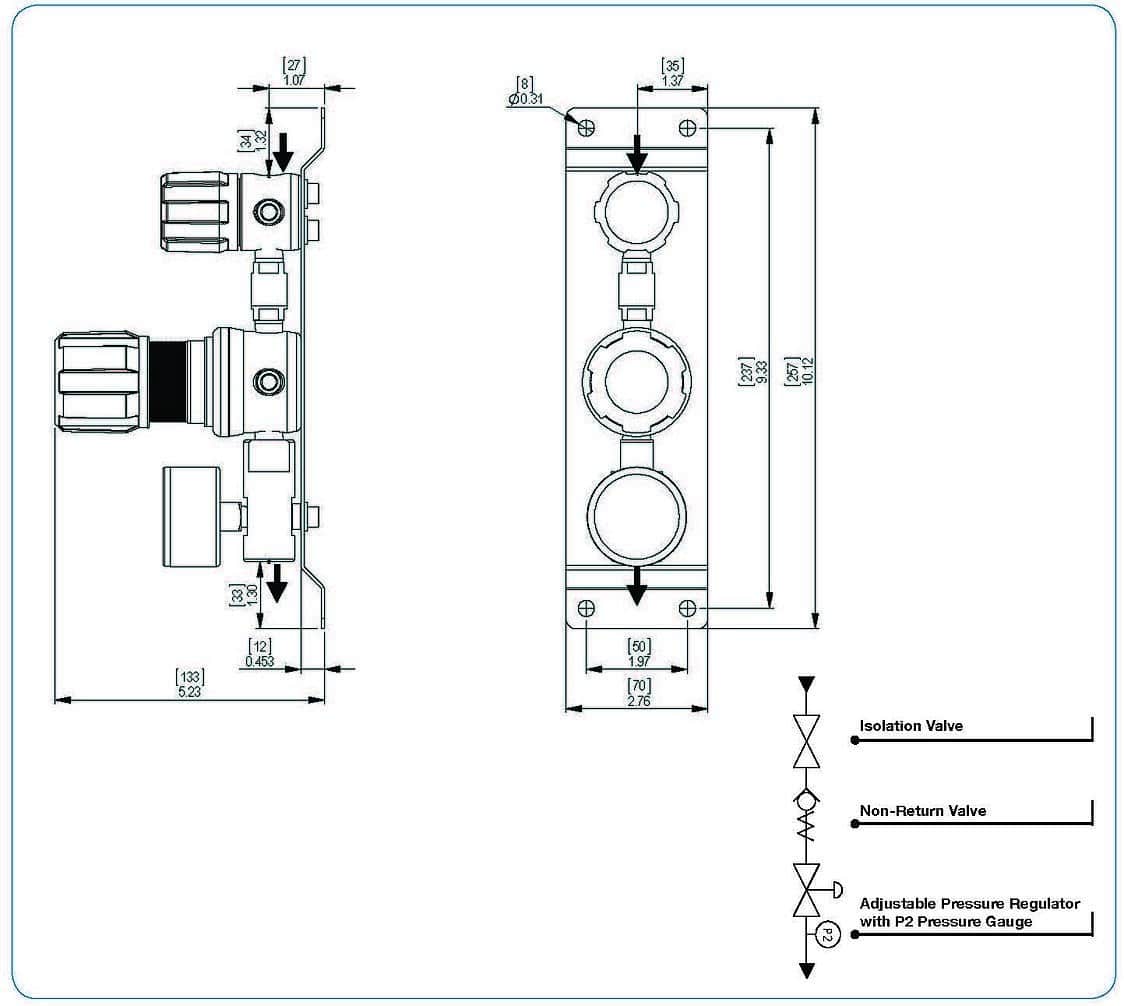

- SPEC MASTER HPC6000 SERIES
6.0 Purity Nickel Plated Brass Barstock Diaphragm In-Line Outlet Point
- CHEM MASTER SGC6000 SERIES
6.0 Purity Stainless Steel Diaphragm In-Line Outlet Point
Chem-Master: 316L Stainless steel
Spec-Master: Nickel plated brass
Valve Seat: PCTFE
Diaphragm: 316L Stainless steel
Filter: Sintered 316L Stainless steel
Temperature: -20c to +60c
Diaphragm Maximum: 207 bar
Piston Maximum: 300 bar
0-1.5, 0-3.5, 0-6 or 0-10 bar
Inlet Port: 1/4″ NPT Female
Outlet Port: 1/4″ NPT Female
Helium Leak Integrity: 1 x 10-9 mbar I/s
Gas Purity: Grade 6.0 ( 99.9999%)
